cdurocher
New member
I have a MacPro 1,1 first generation and I want to know if it's possible to use the video card: ATI Radeon HD 4870 on it? Will it work? X1900 totally sucks in video editing. I have the last new Imac and it convert video files quicker LOLLL...
or what is the best video card I can get for my macpro to replace RadeonX1900 ?
Here is the specs of my macpro:
Model Name: Mac Pro
Model Identifier: MacPro1,1
Processor Name: Dual-Core Intel Xeon
Processor Speed: 2.66 GHz
Number Of Processors: 2
Total Number Of Cores: 4
L2 Cache (per processor): 4 MB
Memory: 12 GB
Type: DDR2 FB-DIMM
Speed: 667 MHz
Bus Speed: 1.33 GHz
Chipset Model: ATY,RadeonX1900
Type: Display
Bus: PCIe
Slot: Slot-1
PCIe Lane Width: x16
VRAM (Total): 512 MB

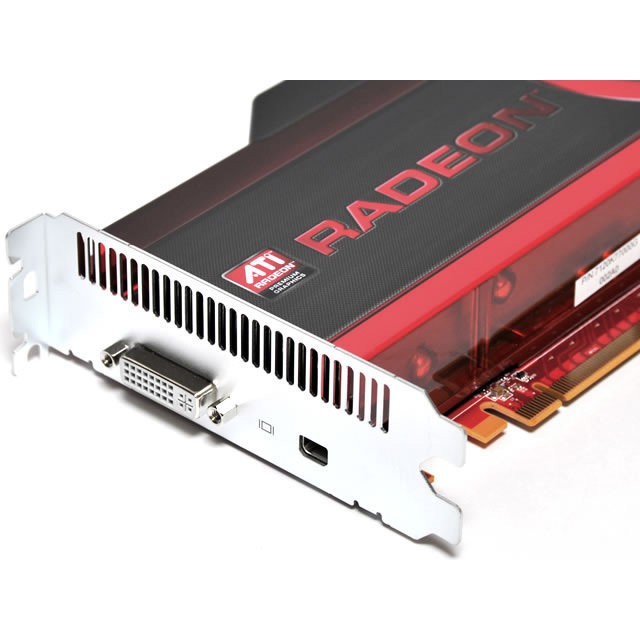

- The Radeon HD 4870 Mac Edition was a graphics card by ATI, launched in January 2009. Built on the 55 nm process, and based on the RV770 graphics processor, in its RV770 XT Mac variant, the card supports DirectX 10.1. Since Radeon HD 4870 Mac Edition does not support DirectX 11 or DirectX 12, it might not be able to run all the latest games.
- Original Apple Ati Radeon 4870 512mb Graphic Card Mac pro Bill Merchant + Kit. £203.02 + £0.11 postage. Make offer - Original Apple Ati Radeon 4870 512mb Graphic Card Mac pro Bill Merchant + Kit. Gainward ATI Radeon HD 4870 Twin Fan Golden Sample 512MB. £39.55 + £13.00 postage.
March 14, 2009
Flashing 4870 to work in MacPro
If you dont like minidisplay port or dont want to pay 3 times more for a card from apple, here is directions for how to get 4870 card working in macpro.
1) go to here and download 4870.ROM.zip file, and unpack it
2) backup rom of 4870 card, you can use latest gpu-z utiliy for it
3) flash you 4870 card using dos usb stick and atiflash
atiflash.exe -p -fs -fp 0 4870.rom
I’m not going to explain how to do it, all info is available over net, use google.
Radeon 4870 For Mac High Sierra
4) install drivers pkg for 4800 from #radeonhd channel on irc.osx86.hu (first link in topic)
after installing pkg remove /System/Library/Extensions/Natit.kext
Ati Radeon Hd 4870 For Mac
5) reboot, should work just fine
both dvi ports works.
it was tested with standart card (2dvi and 1 svideo ports), nobody tested with nonstandart cards (with vga/hdmi/DP ports)
known problems : vga (with dvi2vga) doesnt work.
WARNING: I’m not responsable for any damage you can do to your system, Do it all at your own risk.
P.S. once you update to 10.5.7+ u can forget forever about step 4
